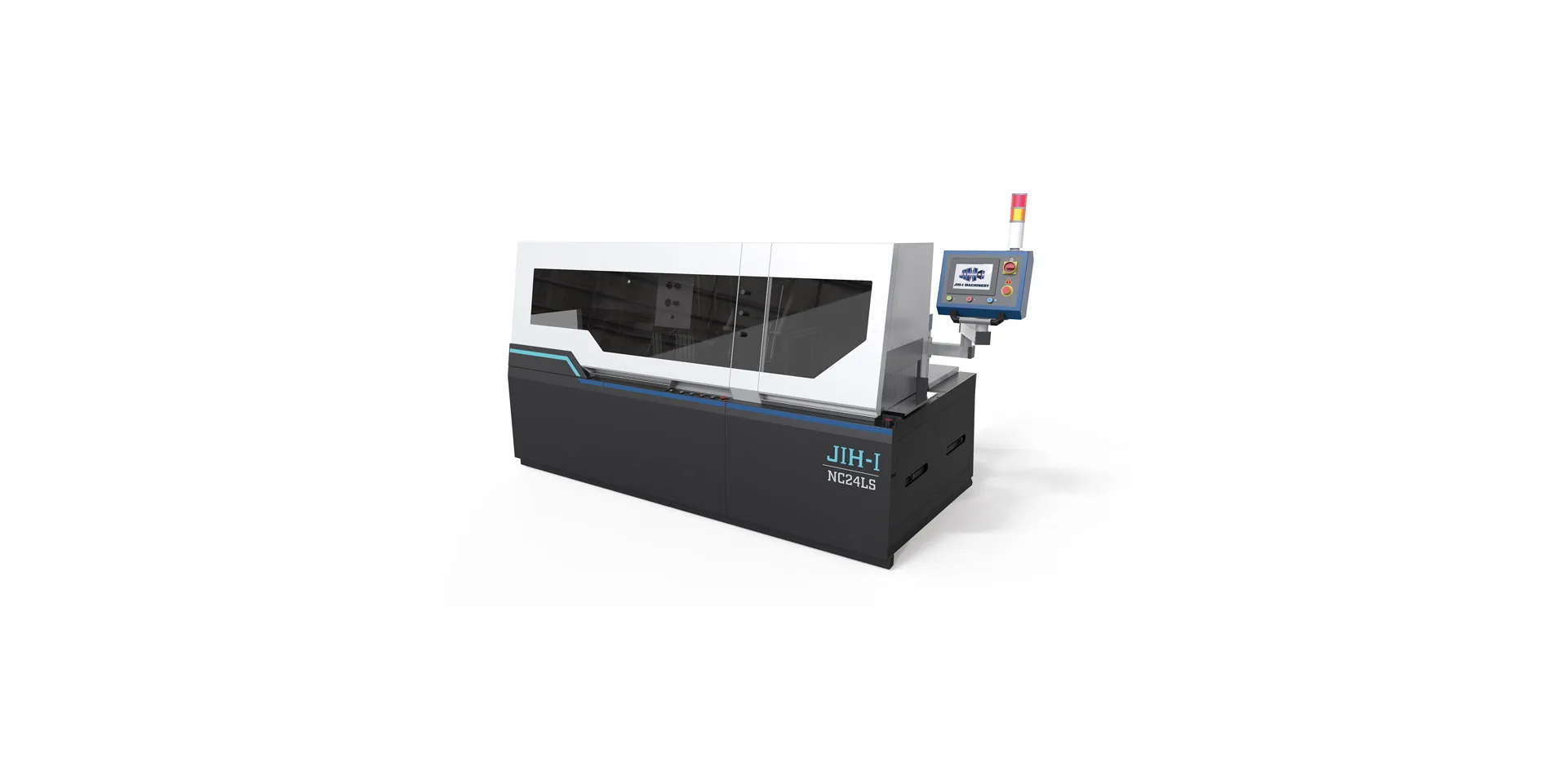

NC24LS/NC24LBS NC 90° - HORIZONTAL SAWING MACHINE ( FULL AUTOMATIC )
Marrin Makina
NC24LS/NC24LBS NC 90° - HORIZONTAL SAWING MACHINE ( FULL AUTOMATIC )
Model
JIH-NC24 LS (NEW TYPE)
JIH-NC24 LBS(NEW TYPE)
Servo Drive System
Ball screw
Ball screw
Cutting Capacity ( H x W )
200 x200, 175 x210, 130 x350, 40x400 mm (Depends on saw blade size)
200 x200, 175 x210, 130 x350, 40x400 mm (Depends on saw blade size)
Max. Feed Distance(one cycle)
1,000 mm(Unlimited recycle feed distance)
2,500 mm
Saw Spindle Speed
1,500 ~ 3,500R.P.M .
(Depends on saw blade size to set)
1,500 ~ 3,500R.P.M .
(Depends on saw blade size to set)
Saw Spindle Motor
15 HP(level 4)
15 HP(level 4)
Inverter
15 HP(opt.20HP)
15 HP(opt.20HP)
Material Feed
Servomotor
1kw (Optional 1.5kw)
2kw
Saw Feed
Servomotor
1kw
1kw
Table Height From Floor
920 mm
920 mm
Touch-Sensing Screen
9.7"
9.7"
Saw Blade Size
Choice of 12"~24"(1" bore)
Choice of 12"~24"(1" bore)
Max. Load
100kgs
100kgs
Air Pressure
4 ~ 6kgs / cm²
4 ~ 6kgs / cm²
Machine Dimensions (L x M x H)
3,700 x 1,970 x 1,870 mm
5,800 x 1,970 x 1,870 mm
Packing Dimensions (L x M x H)
3,800 x 2,070 x1,970 mm
5,900 x 2,070 x 1,970 mm
Net / Gross Weight
2,835 / 2,920kgs
3,300 / 3,500kgs
