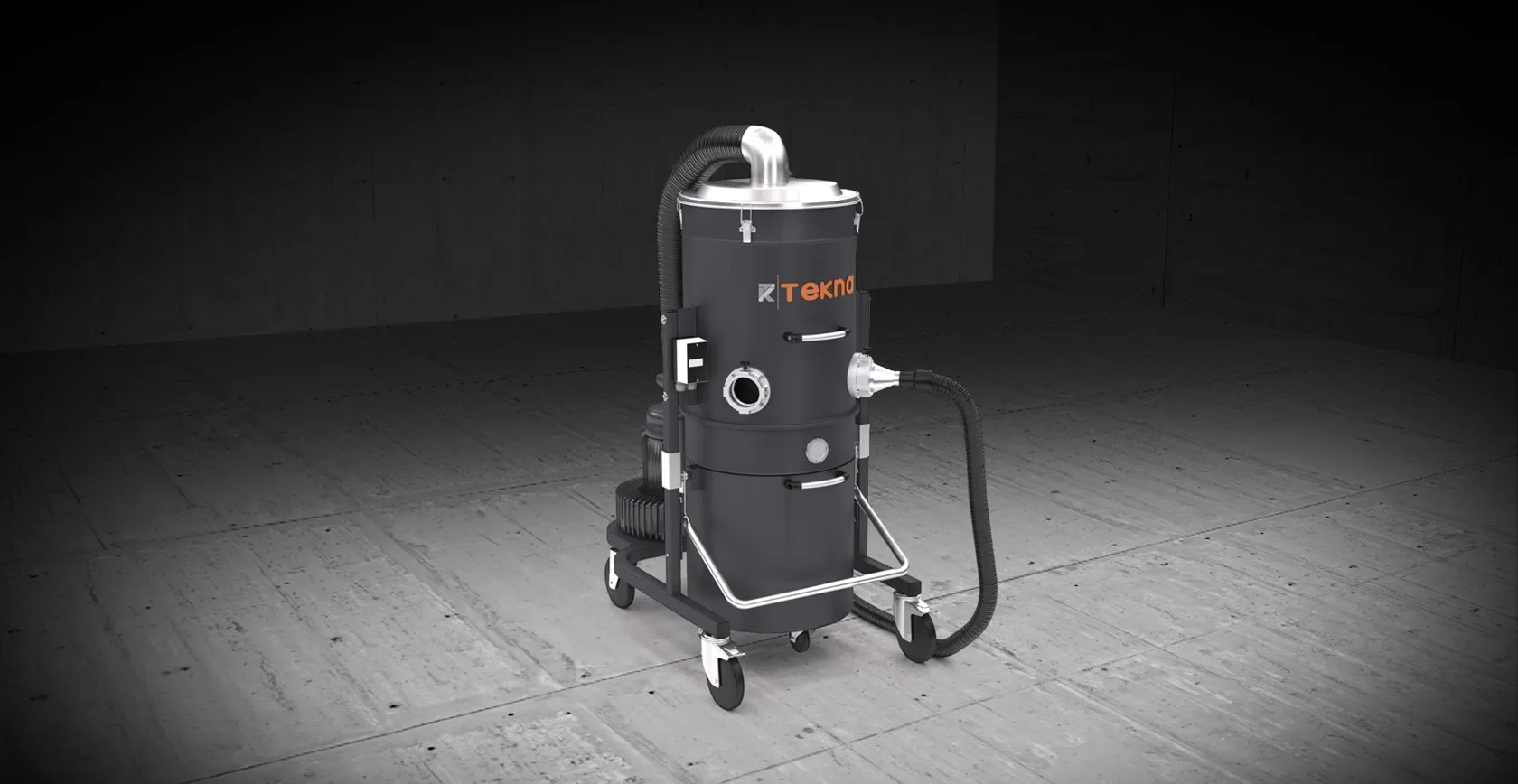

The swarf exhauster with double suction nozzle system is intended for the work environment. The use of a high-depression side duct turbine makes it suitable for various extraction requirements. Equipped with an anti-static filter, it is suitable for the extraction of aluminium and PVC swarf and comes complete with a wheel-mounted, quick release collection tank.
| MACHINE FEATURES |
MG2-T |
MG2-TP |
MG2-V |
MG4-V |
MG4-VP |
MG8-T |
| Engine Type |
Turbine |
Turbine |
Ventilator |
Ventilator |
Ventilator |
Turbine |
| Aspiration mouth diameter (mm) |
100 |
100 |
100 |
100 |
100 |
100 |
| Number of aspiration ports |
1 |
1 |
1 |
2 |
2 |
2 |
| Tank capacity (l) |
100 |
100 |
100 |
160 |
160 |
160 |
| Flow (m3 / h) |
310 |
310 |
1200 |
1400 |
1400 |
550 |
| Pressure relief (mbar) |
200 |
320 |
20 |
25 |
25 |
270 |
| Engine power (kW) |
2.2 |
4.0 |
1.5 |
2.2 |
2.2 |
5.5 |
| Engine speed (rev / min) |
2800 |
2800 |
2800 |
2800 |
2800 |
2800 |
| Weight (kg) |
110 |
115 |
100 |
125 |
125 |
190 |
| Bag filter |
● |
● |
● |
● |
● |
|
| Cartridge filter |
|
|
|
|
● |
|
| Vibrator filter cleaning system |
● |
● |
● |
● |
● |
|
| Automatic start by direct power supply of the machine |
|
|
● |
● |
|
|
| Automatic start with the machine |
|
|
|
|
● |
|
