Casting aluminum door
Casting copper door
Aluminum with PVC panel
Any kind of panel, acrylic or non-ferrous metal etc......
Wooden mould carving, solid wood door, plate type material
Bakelite, glass fiber, aluminum plate, solid wood, lettering, carved, to fit customized furniture, home improvement
Aluminum template processing

Italian spindle with high frequency ,power 8KW, low noise and long life .
High-efficiency carousel type automatic tool change system
Tempering treatment,strong body won`t be out of shape, high rigidity (with customized table)
Automatic tool length measure system, automatic position system
X axis motor drive from both side, make it working stable
3 axis automatic lubrication
Oil mist cooling
Spindle head dust collector

Model	JIH - CNC 48B
Stroke
X-Axis Stroke	2,470 mm
Y-Axis Stroke	1,250 mm
Z-Axis Stroke	250 mm (opt. 700 mm)
Distance from spindle nose to table surface	50~300 mm
Feed Rate
X-Axis Rapid Feed Rate	36M / min
Y-Axis Rapid Feed Rate	36M / min
Z-axis rapid feed rate	24M / min
Cutting Feed Rate	F:1~5,000 mm/min
Repeatability Accuracy	X: ±0.02mm Y: ±0.01mm Z :±0.01mm
Spindle
Motor	10HP (7.5kw)
X-Axis Motor	1.3 kw × 2
Y-Axis Motor	1.3 kw
Z-Axis Motor(brake)	1.3 kw
Table Height From Floor	820 mm
Max. Range of Processing	1,250~2,470 mm
Spindle Speed	1,000~24,000 R.P.M.
Tool Magazine Type
Magazine Capacity	8 pcs
Tool Holder	ISO 30
Collet	ER-32
Dimensions
Vacuum Zone	2 zone (vacuum table)40bar
Reguired Pneumatic Pressure	6 kgs/cm²
Machine Dimensions(LxWxH)	5,800×2,900×2,100 mm
Machine Weight	4,800 kgs

Technical Files

Please use below form to more details

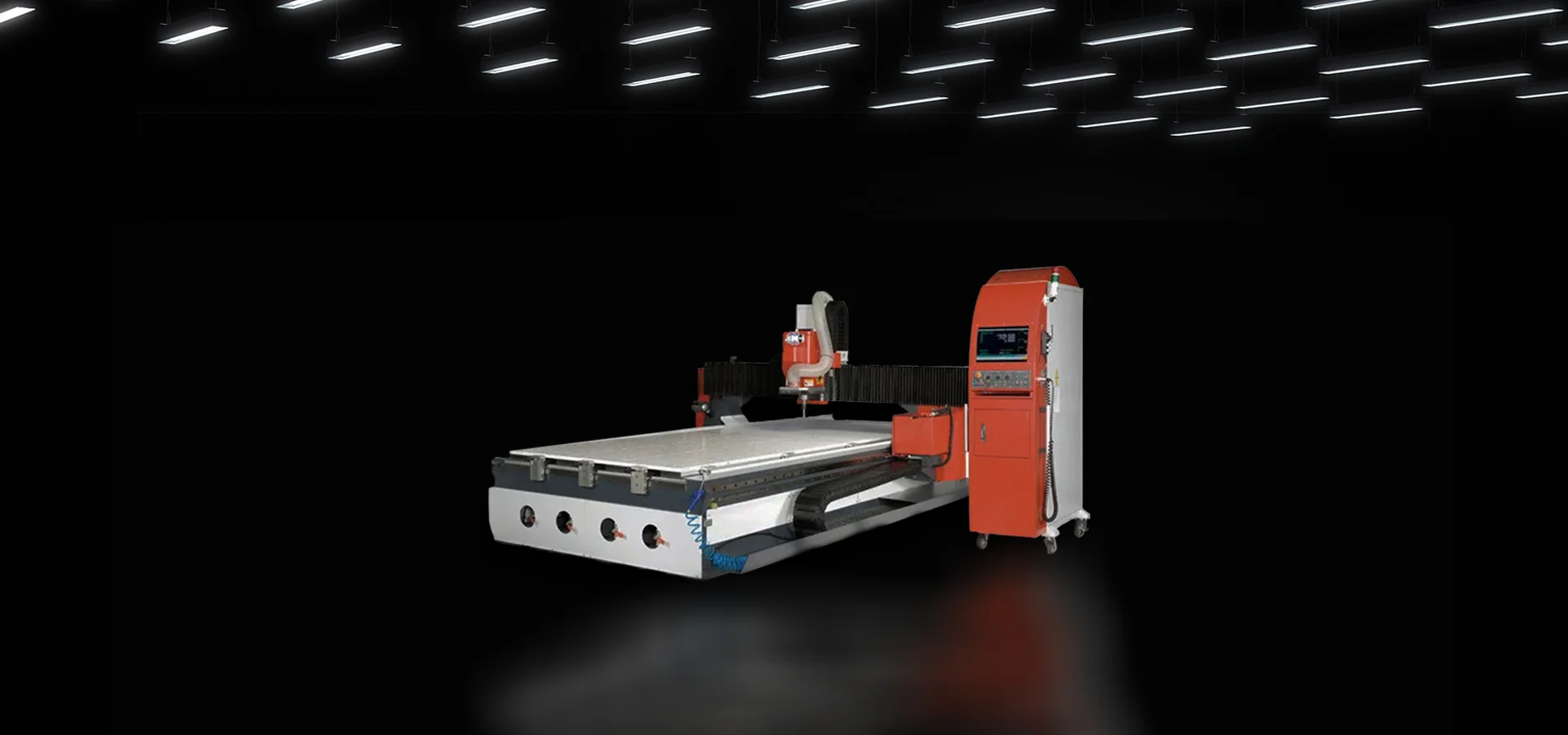

JIH-CNC 48B - 3 AXIS MACHINING CENTER
